Architectural Design Standards

September 23, 2009



ADS 5.11 Parapets & Cornices

Residential
V VI VII VIII

ADS 5.11.1 Intent.

In order to visually terminate an exterior wall on a flat-roofed building, a cornice on a parapet wall shall be used. This cornice provides a minimal amount of protection to the wall that a pitched roof overhang would normally provide.

Standard:

ADS 5.11.2 Parapets with a Cornice.

Flat roofs shall incorporate a parapet and cornice into all building fronts. The cornice shall wrap a minimum of four (4) feet around corners. Flat roofs projecting from a building front shall include a cornice around the entire projection.

ADS 5.11.3 Parapets without a Cornice.

Simple parapets with a stone or brick cap without a cornice are allowed on building sides other than a building front.

Parapets and Cornices

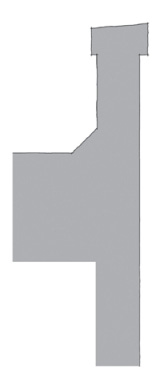

drawing of a simple parapet with stone or brick cap

         Simple parapet with Stone or Brick Cap

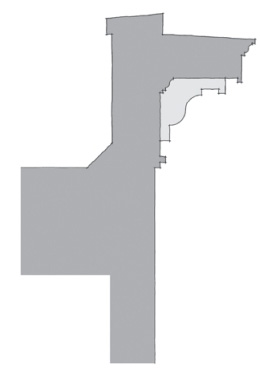

 drawing of a parapet with cornice

Parapet with Cornice

Building Fronts
drawing of a building with two building fronts with cornice on exterior corners



Two Building Fronts:

Wrap cornice 4' around

exterior corners

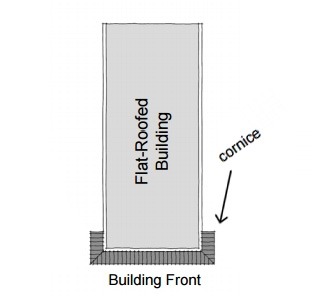

 drawing of a building with one building front and exterior wrapped cornice corner



One Building Front:

Wrap cornice 4' around

exterior corners

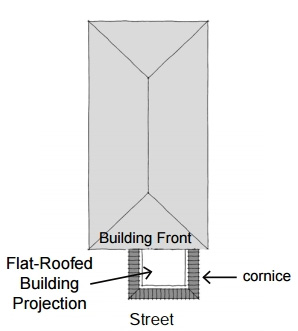

 drawing of the front of a building with a front building projection wrapped in cornice around the entire projection



Building Front Building Projection:

Wrap cornice around

entire projection



Don’t Do This:

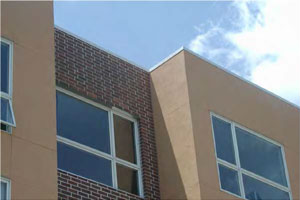

photo of a building front





Flashing on top of the parapet does not count as a cornice on

building fronts.



 photo of a building front with cornice





The cornice on this building front does not wrap around the

corner at least 4'.

Do This:
photo of a building front with cornice



The cornice wraps around the entire building projection.



 photo of a building front with cornice and parapet



The building front correctly contains a parapet with cornice.

Effective on: 1/1/1901
